We continually research technological developments for environmental measurement and analysis equipment.

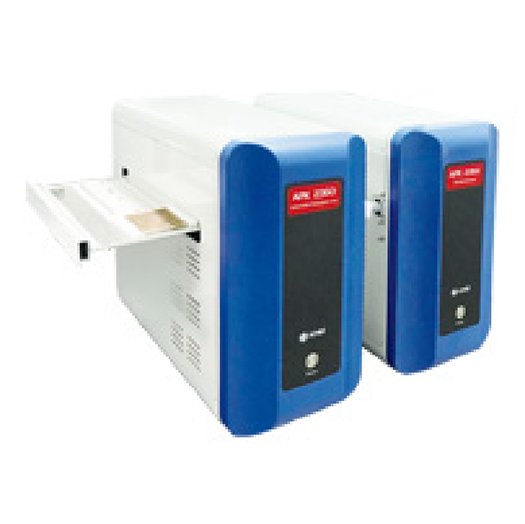

Multi-channel thermal desorption low temperature concentrator
(APK2350 + APK2360, for adsorption tube)
It is a device that concentrates the sample collected in the adsorption tube at low temperature for thermal desorption and injects it into the analyzer.
It is applied to VOC and odor analysis, and up to 24 adsorption tubes can be automatically analyzed through APK2360 Automated Desorption Unit.
System features
Compatible with most GCs such as PerkinElmer, Agilent, Shimadzu, etc.
Adsorption tube ¼” O.D x 3.5” L applied
Minimized Cold Point (Provides highly reproducible data)
1Ch. 24Ch. by adding Option (APK2360) to TD. Automatic continuous analysis
Specification
APK2350
Peltier Type
Focusing Temp. : -20°C
Focusing Trap :
Glass (O.D 6mm, I.D 4mm, L 130mm)
Single or Multi-Bed (2bed, 3bed)
Power : 220VAC, 50/60Hz
Dimension : 270 x 550 x 450 (W x D x H)
APK2360
Channel : 24 Ch.
Control : APK Control Program
Trap Heating Temp. : 400°C (Max.)
Power : 220VAC, 50/60Hz
Dimension : 270 x 550 x 450 (W x D x H)
